Golf Cart Battery Meter Lead Acid Battery

Payment Type:Western Union,T/T,Paypal,MoneyGram

Port:shenzhen

$1050-199Others

$9.8200-499Others

$9.5≥500Others

Product Attributes
Supply Ability & Additional Information
Packaging & Delivery
Other information

Product Attributes

Model Number: DS4015

Operating Voltage: 12V/24V, 36V, 48V/72V

Operating Current: ≤ 20 mA nominal

Operating Temperature: -40℃ - +85℃

Capacity: 1 Red 2 Yellow 7 Green color LED for indicator

Application: 12V/24V/36V/48V/72V volt DC battery powered equipment

Place Of Origin: Guangdong, China

Supply Ability & Additional Information

Packaging: Blister Package/Poly Package/ OEM Package

Supply Ability: 3000 Piece/Pieces per Day

Port: shenzhen

Payment Type: Western Union,T/T,Paypal,MoneyGram

Packaging & Delivery

Selling Units:

piece

Package Type:

Blister Package/Poly Package/ OEM Package

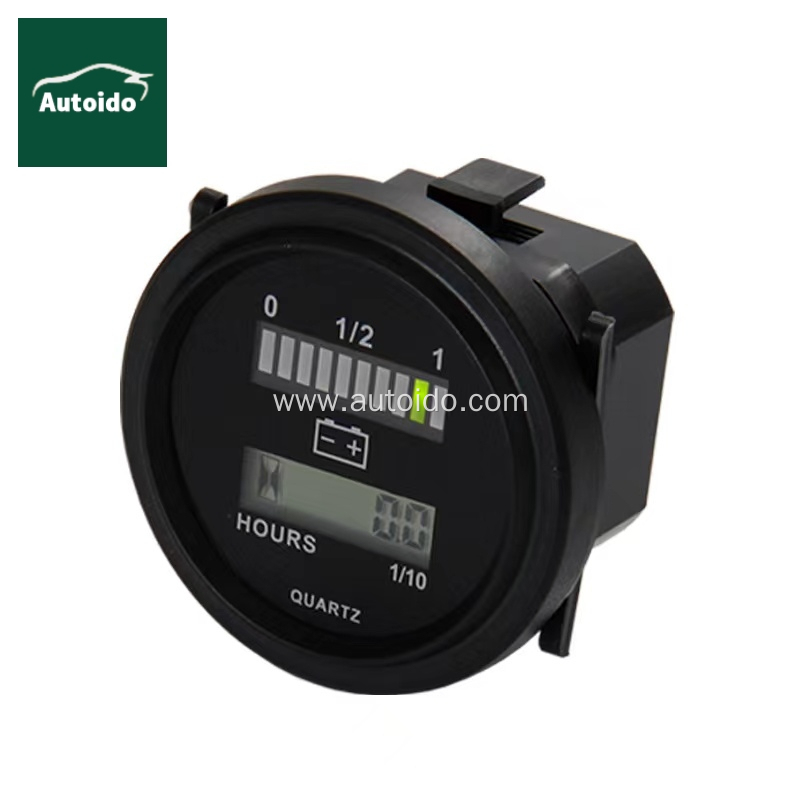

12V/24V/36V/48V/72V Golf Cart Battery Meter Lead Acid Battery Level Indicator Charging Reminder Resettable Hour Meter

Specification

System Voltage	12V/24V, 36V, 48V/72V
Operating Current	≤ 20 mA nominal
Operating Voltage	+/- 25% of nominal voltage
Operating Temperature	-40℃ - +85℃
Product installation range	works for carts, car, boat, marine, motorcycle, ATV, tractor, truck, forklift

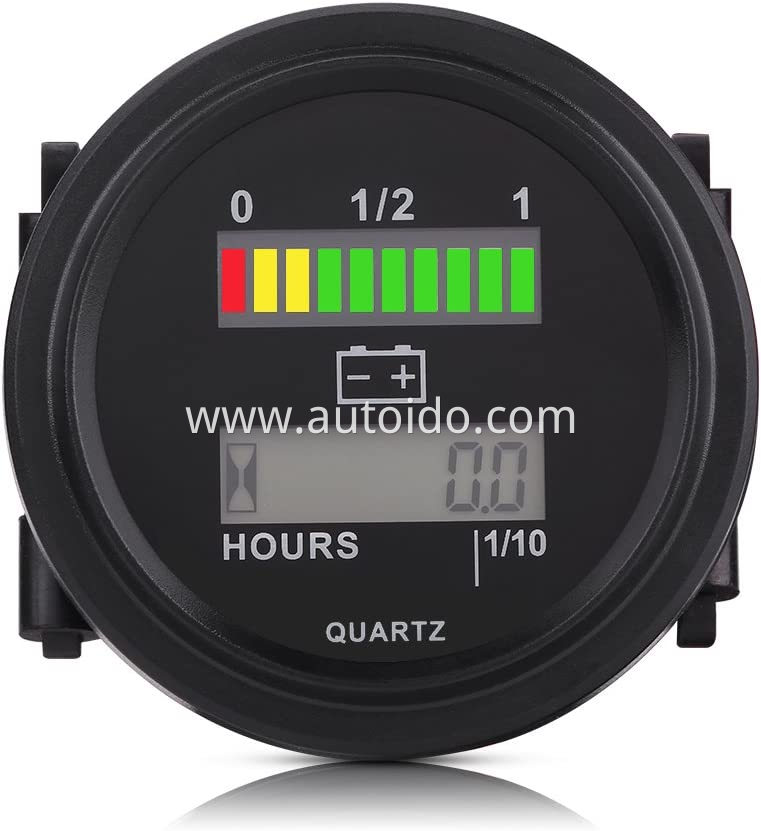

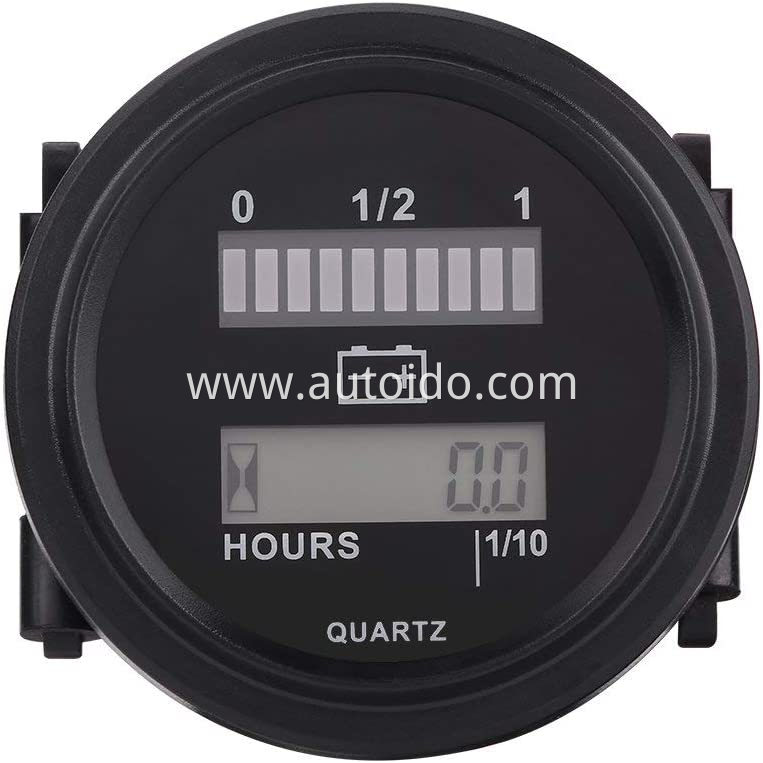

* MULTIFUNCTIONAL METER---- It is a multifunctional meter which include functions of battery capacity meter and hour meter;Display the battery capacity by LED bars, and display the total running hours by LCD screen; Wide operating voltage:12V to 24V,36V,48V to72V.

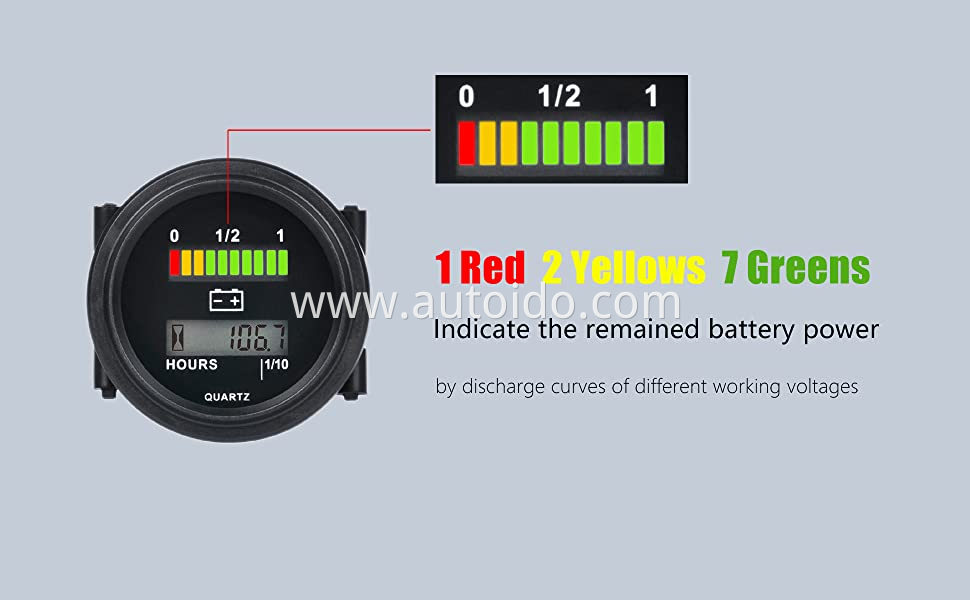

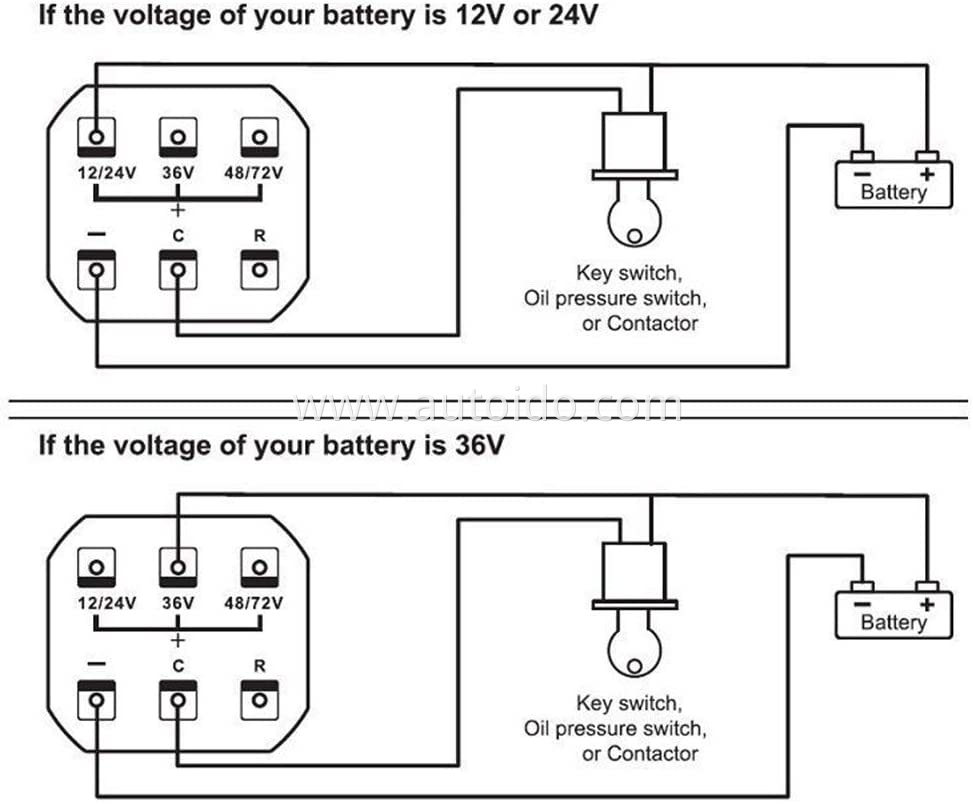

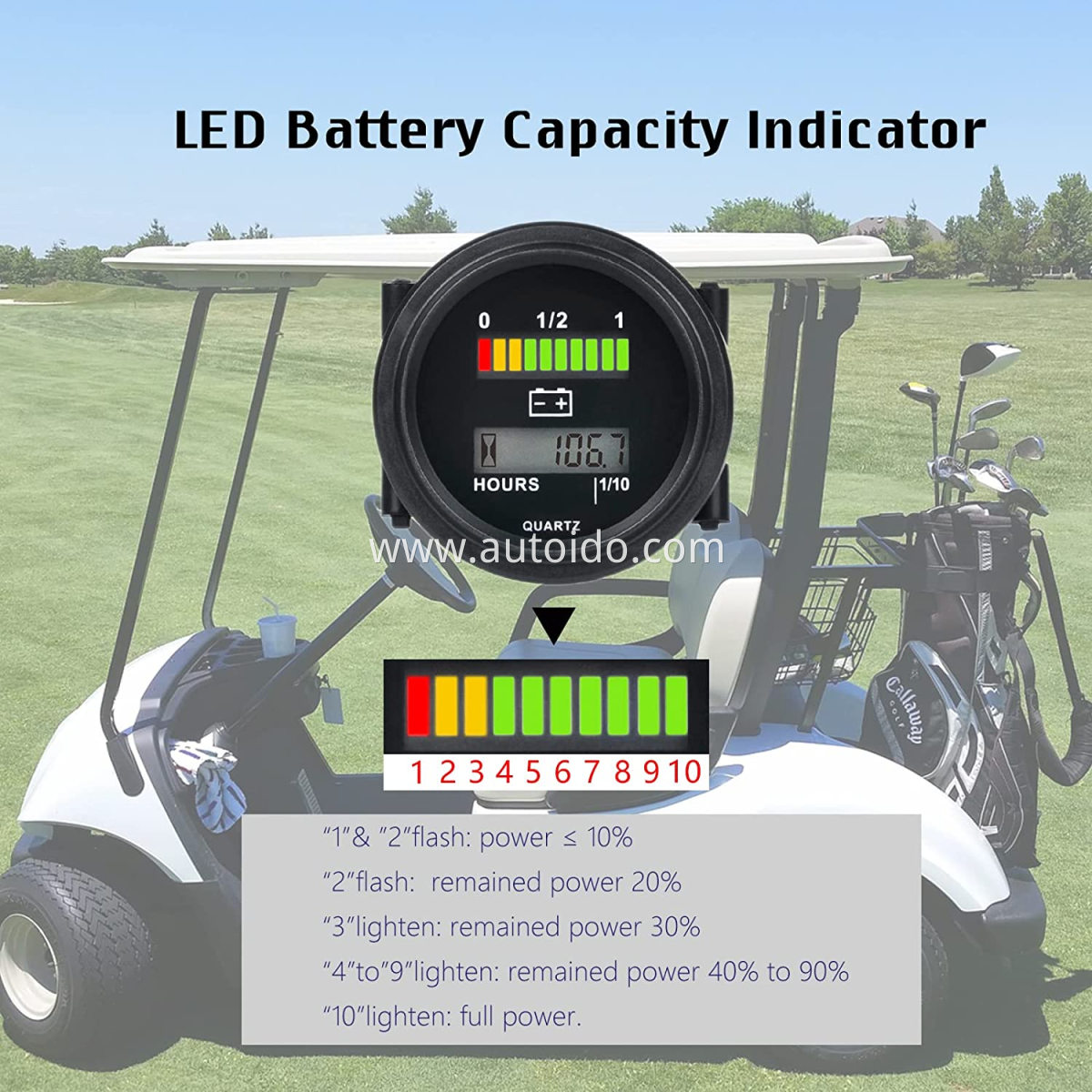

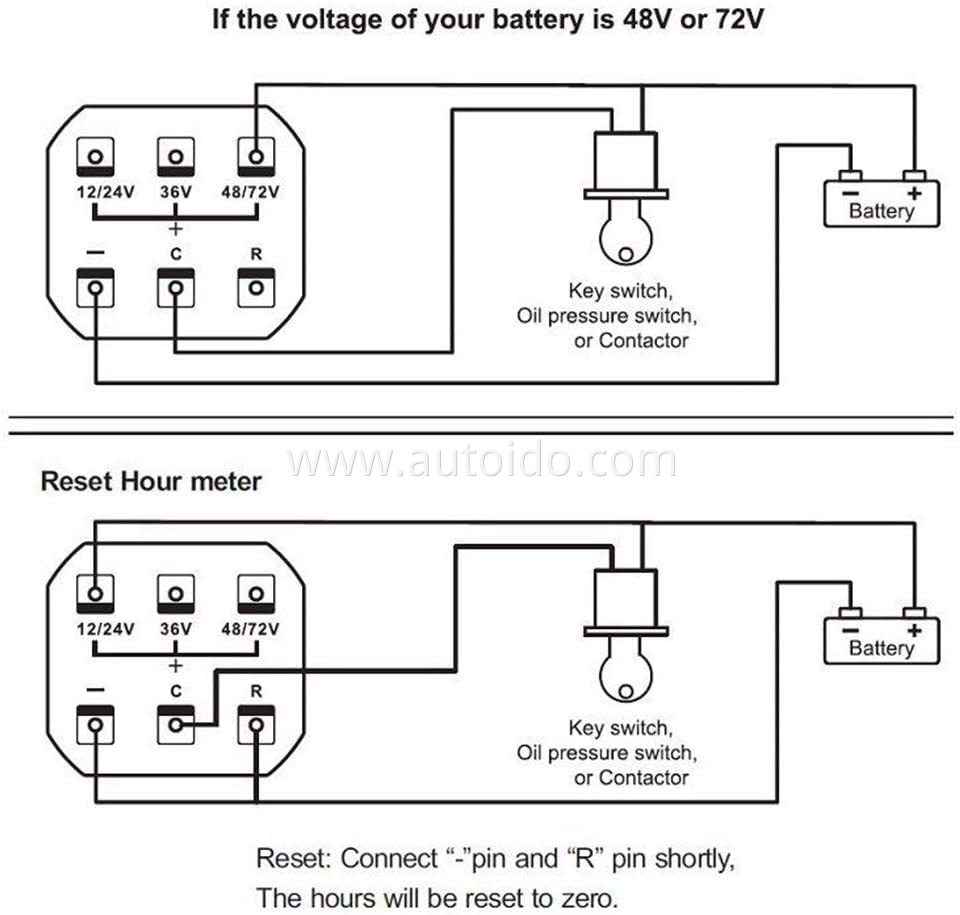

* BATTERY FUEL GAUGE---- It can be used on lead-acid battery (but not Trojian's)powered device to indicate the remain capacity;there are 10 LED bars with 3 colors(red,green,yellow) to display,10% capacity per bars; 3 voltage pins for 12V to 24V,36V and 48V to72V; It is only lighten the LED bar of current battery capacity whatever connect with key switch or direct connection.

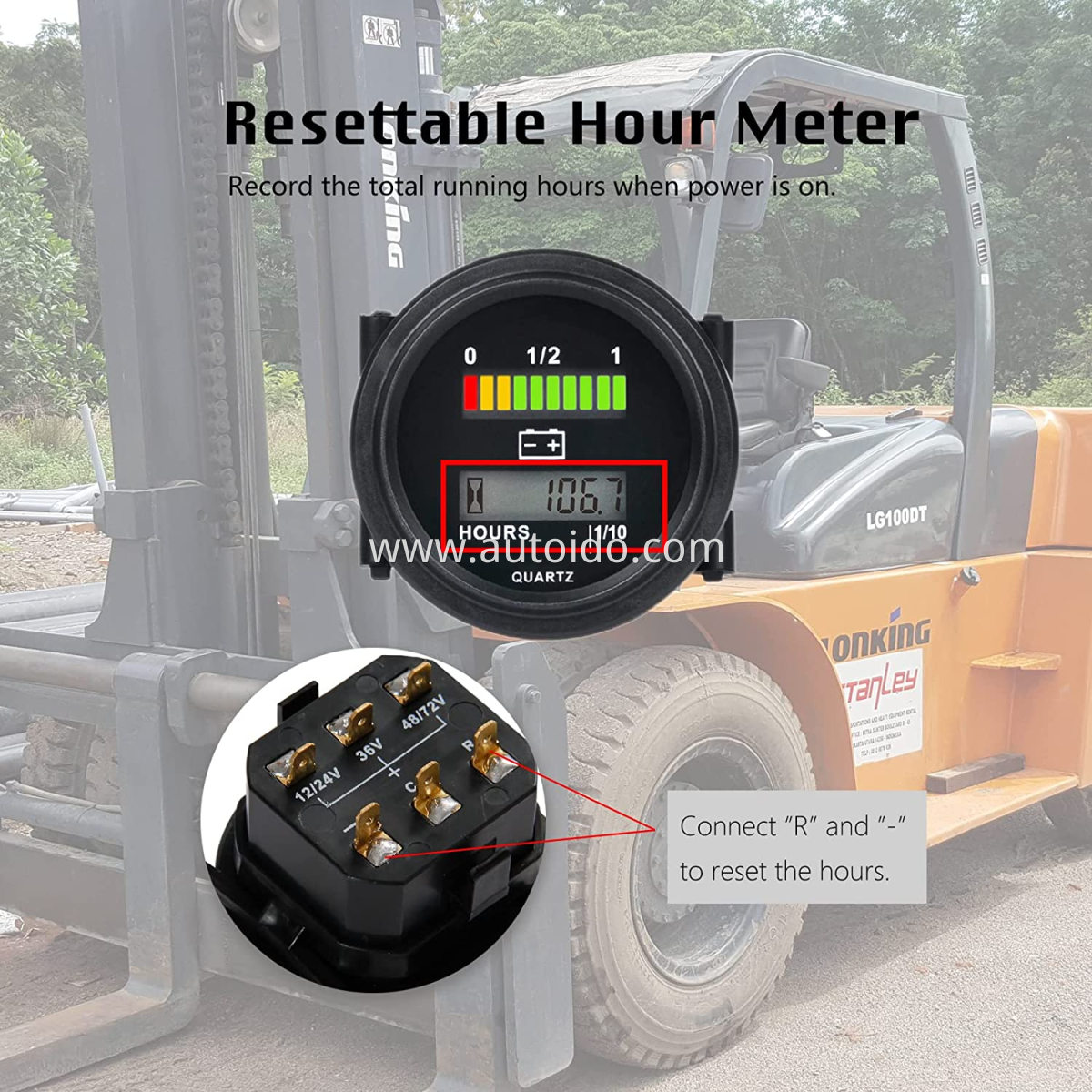

* HOUR METER(TOT)---- It also have function to track how many hours are the engine/machine working, hours read up to 999,999 hours with 0.1/1 hour resolution; TOT hours can be reset, when replace it to another device, it will be restart from 0 also.

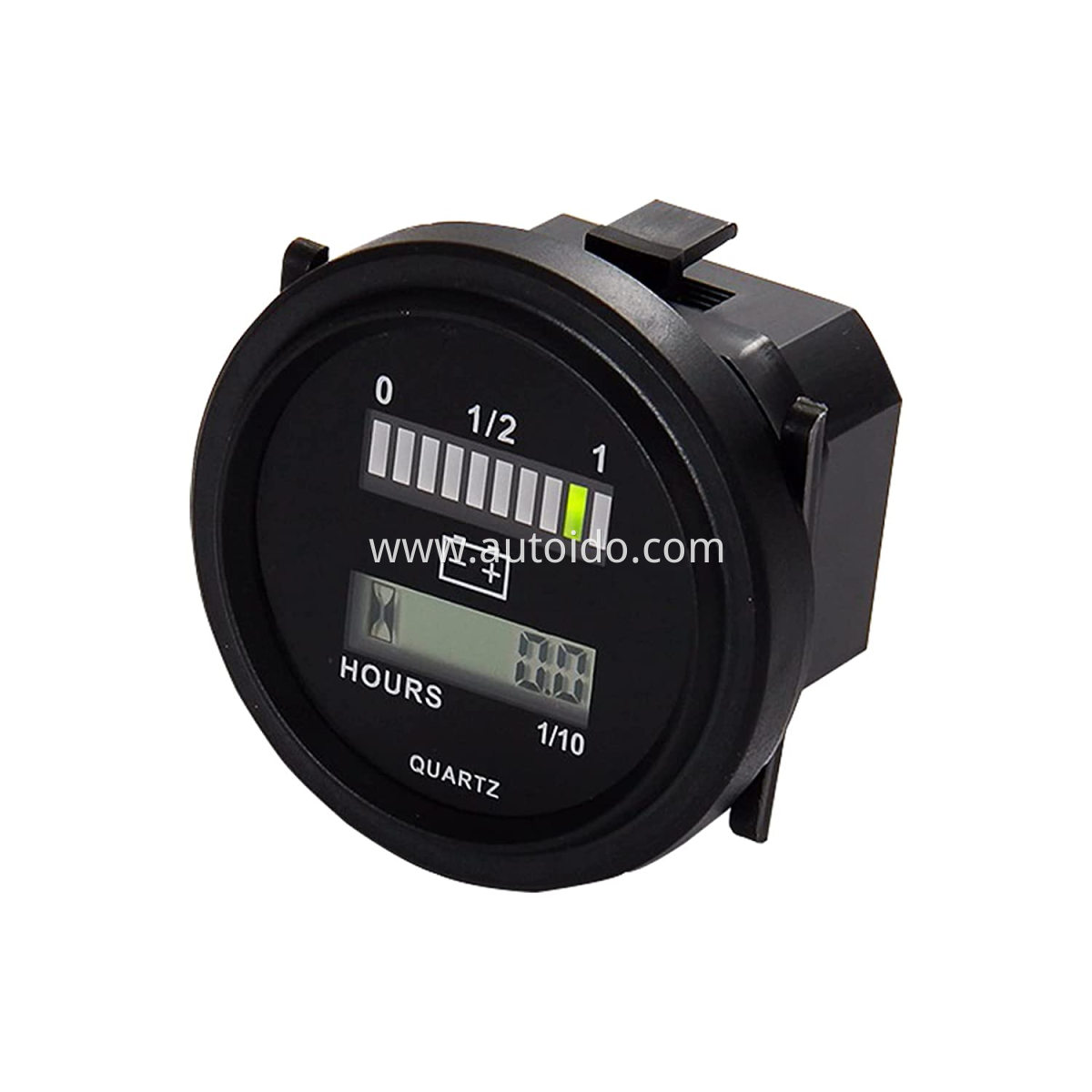

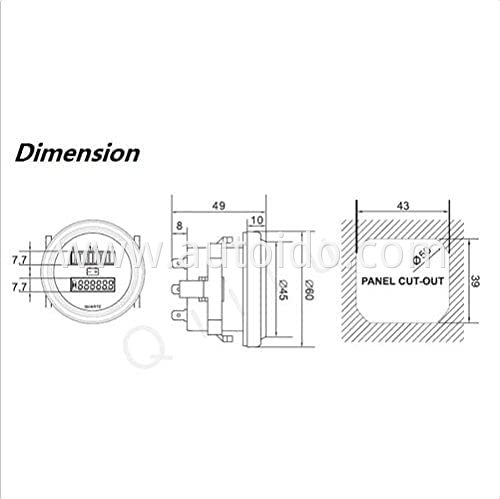

* INSTALLATION ---- Easy to install;Snap-in design with panel cut-out size:Approx 43×39mm,φ50(1.69x1.54 inch,φ50).

All YUJIE product With 12 months warranty.

Free parts will be sent during guarantee period!

Details Images
